VESC tool

Start VESC tool

Open a terminal in the VESC directory and start a Docker container using the following command:

./docker-run-vesc.sh

Inside the container, run the VESC tool:

./run_vesc_tool.sh

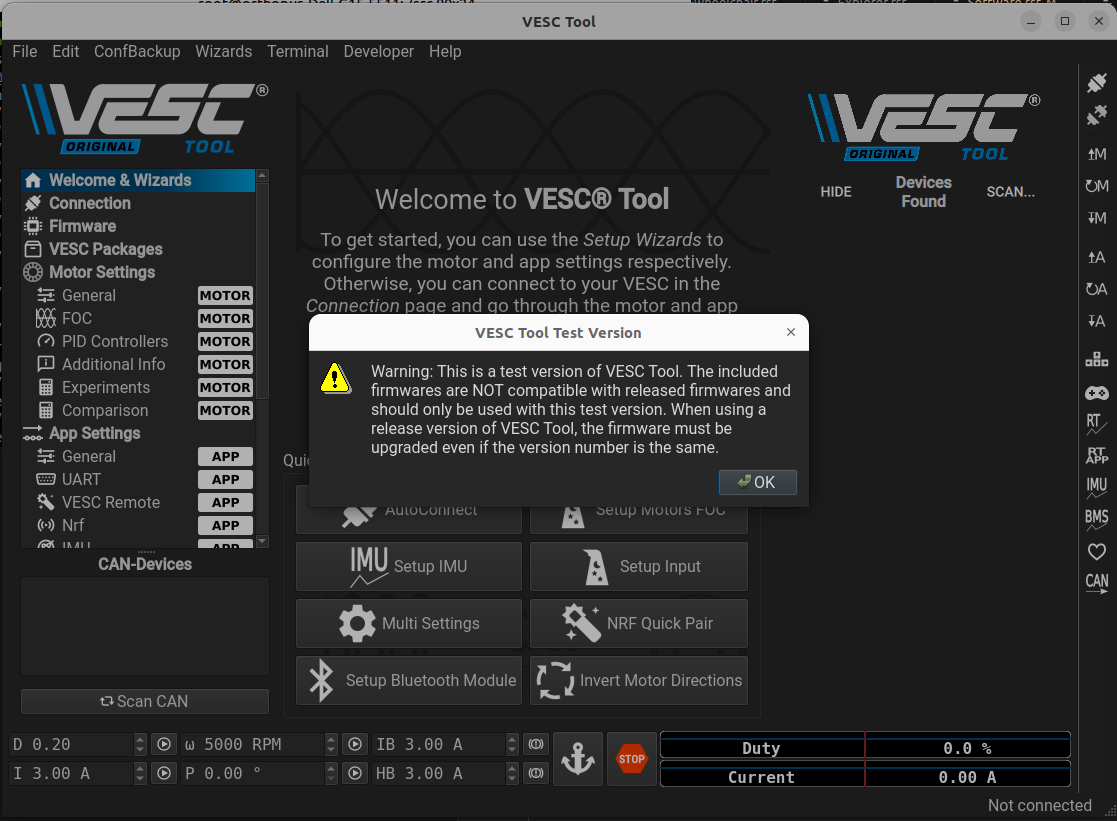

../_images/vesc_tool_start.png

Click on OK to begin using the VESC tool.

Connect using USB

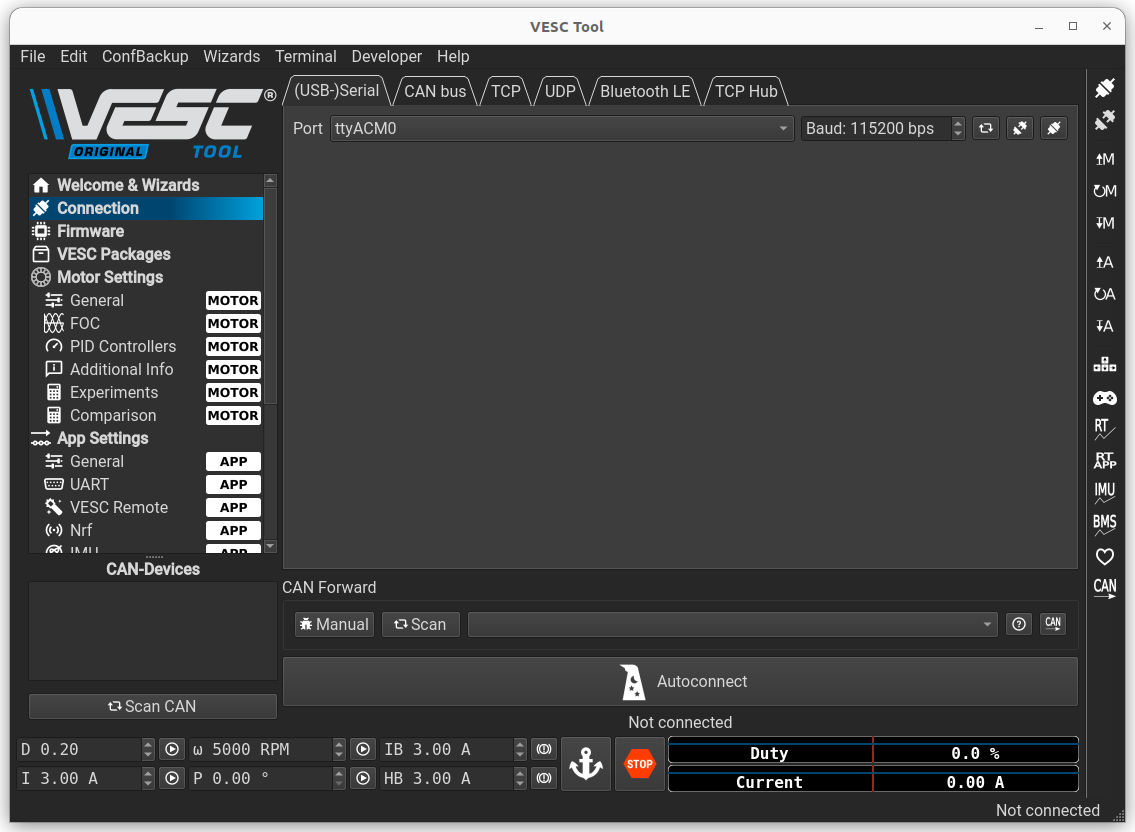

To connect to a VESC using USB, start by connecting the VESC borad to your computer using a USB cable. In VESC tool, go to Connection, then under (USB-)Serial, click on the connected plug icon ico1.

../_images/VESC_USB.png

If the connection is successful, the following message will appear in the bottom-right corner:

../_images/USB_connect.png

Connect using CAN

To connect to a VESC using CAN, start by connecting the VESC board to your computer using a USB cable.

Open a terminal in your VESC directory and run the following command:

sudo ./setcan0_500k_host.sh

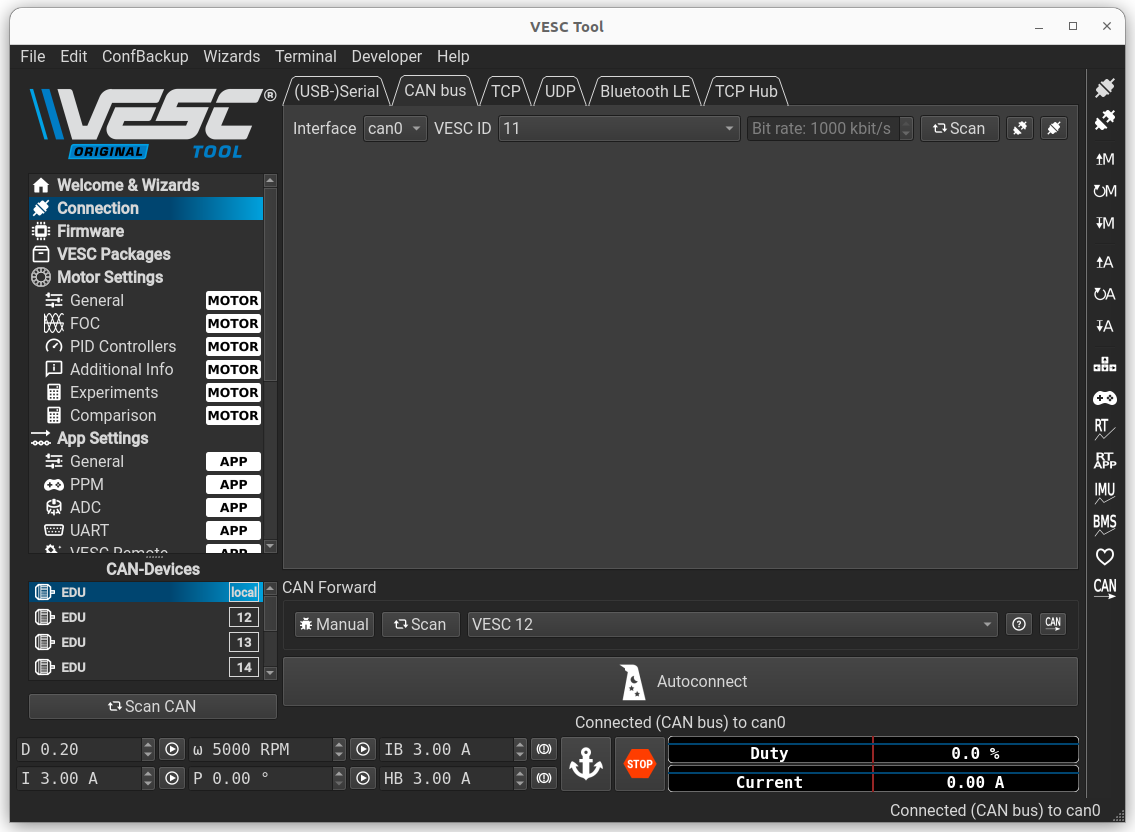

In VESC Tool, go to Connection and under CAN bus, click on the Scan button. After the scan completes, select the VESC ID of the VESC you want to connect to and click the connected plug button ico1.

../_images/VESC_CAN.png

If the connection is successful, the following message will appear in the bottom-right corner:

../_images/CAN_connect.png

Change the CAN ID

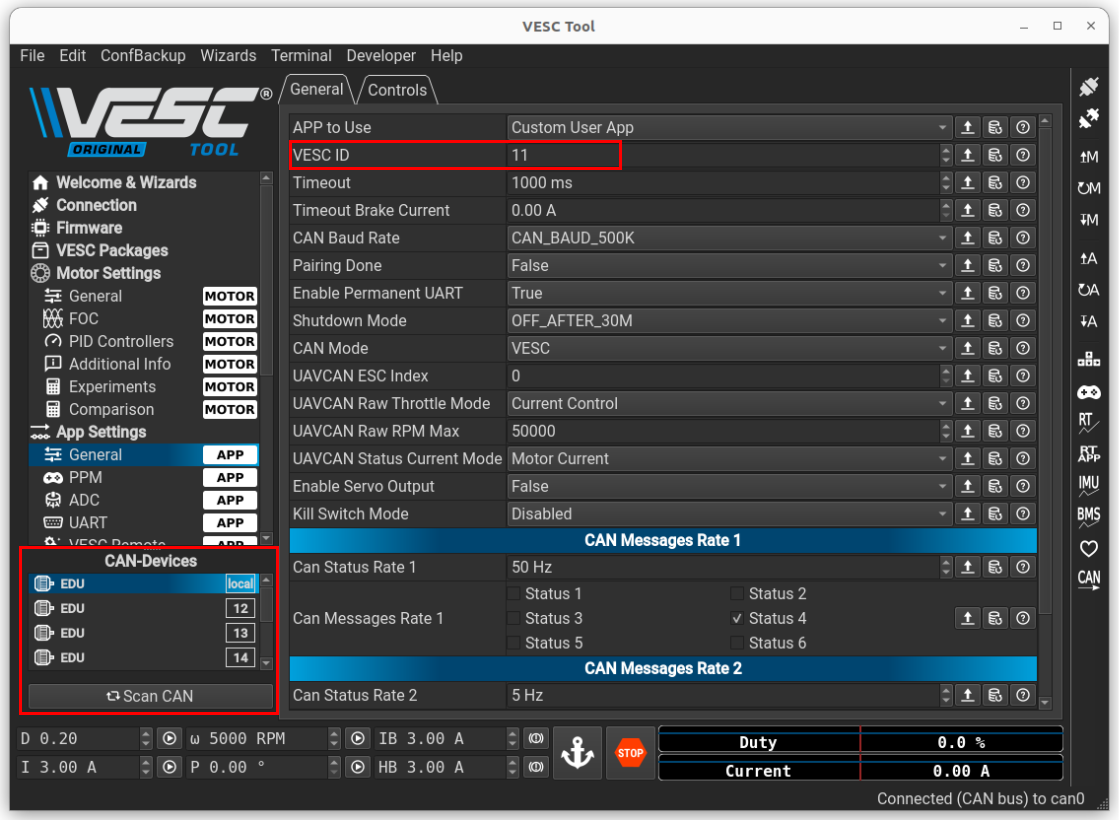

To change the CAN ID of a connected VESC, in VESC Tool, go to App Settings and General, you can now change the VESC ID. Save the changes by clicking the A icon with a downward arrow on the right.

You can view the CAN IDs of all VESCs on the CAN bus at the bottom-left corner of the tool.

../_images/VESC_ID.png

Change the position 0 of an actuator

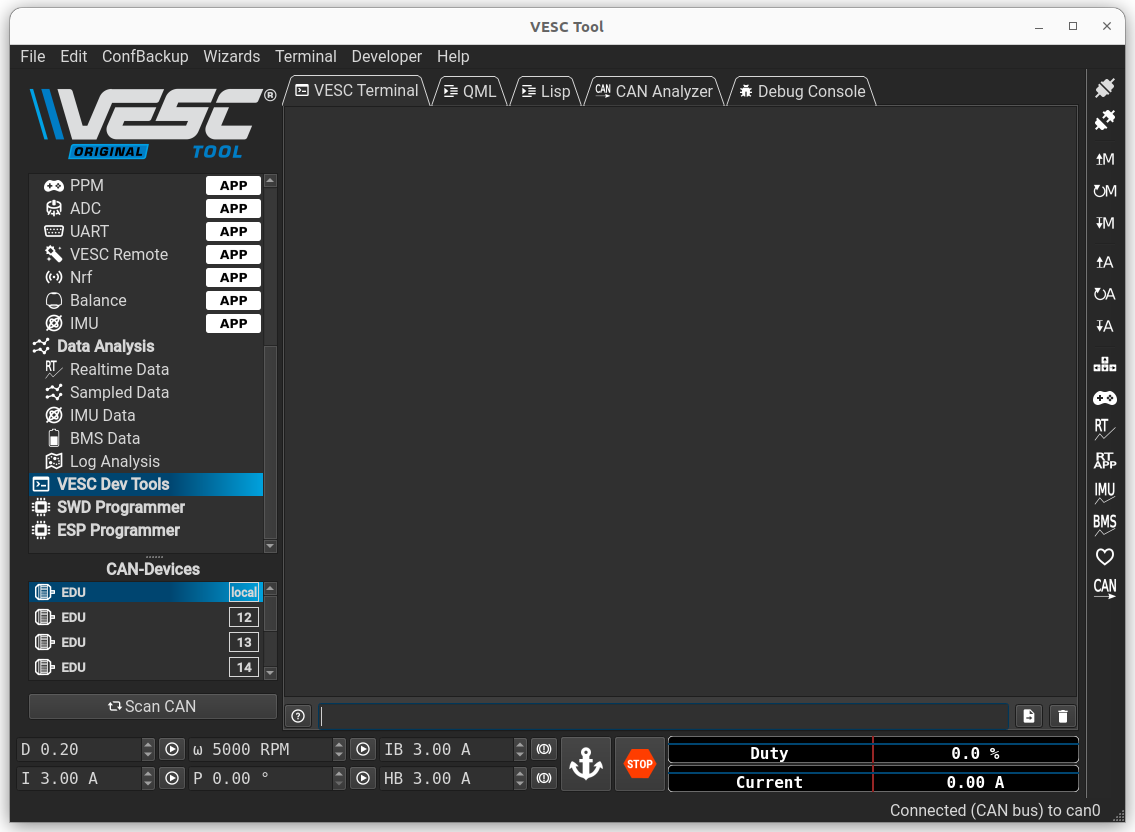

To change the position 0 of an actuator, once connected, go to VESC Dev Tools.

../_images/VESC_terminal.png

In VESC terminal:

  • To save the current position as the position 0, use the following command :

o_offset encoder

  • To save the current position as a specific position relative to 0 (in degrees), use the following command:

o_offset joint (position in degrees)

Save the configuration using this command :

o_config save
